XT3 Digital Pistol Grip Bore Gauge Large Set with Bluetooth - Metric

Bowers XT3 Digital Pistol Grip Bore Gauge Large Set with Bluetooth - Metric

XT3 DIGITAL PISTOL GRIP BORE GAUGE SET WITH BLUETOOTH

Bowers XT3 Digital Pistol Grip Bore Gauge Large Set with Bluetooth - Metric

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.

Product Description

The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features

New ergonomic design with larger and clearer LCD display
IP67 electronics
Simple 2-button operation
4 preset memories
Proximity output with optional built-in Bluetooth
Bi-directional communication
RS-232C output
Range 2-300mm (0.080”-12”)
2-6mm 2 point/ 6-300mm 3 point measurement
Resolution 0.001mm/0.00005”
Tungsten carbide measuring faces on all 3-point heads from 12.5mm
Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”
Extensions available above 6mm for deep hole measurement
Ratchet stop to ensure consistent measurement
Setting rings included with individual instruments and sets
UKAS certificates supplied as standard with all setting rings
UKAS certificates supplied as standard with all gauges
Serial number on all digital readouts and measuring heads
Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
Bore gauges manufactured according to DIN 863, part 4

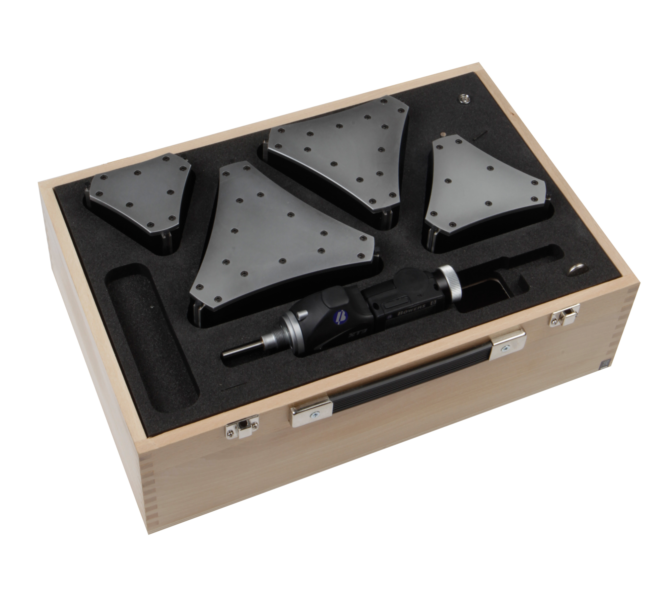

Supplied in fitted wooden case
