WYLER BlueLEVELS with Bluetooth

WYLER BlueLEVELS with Bluetooth

The modular BlueSYSTEM family of instruments is a further enhancement of the well known and well established measuring instruments MINILEVEL NT and LEVELTRONIC NT.

Full data sheet available under Downloads.

The BlueSYSTEM family uses Wyler’s WYBUS system to enable communication and connectivity, with switchable Bluetooth, between all Wyler BlueSYSTEM devices including The BlueCLINO HP, Zerotronic sensors and more, enabling easy data collection to PC in many different ways with a variety of software suited for most applications.

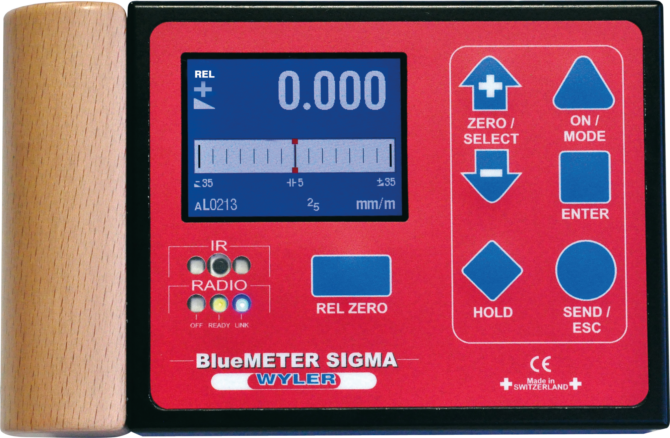

A BlueSYSTEM engineers set normally consists of a pair of high precision BlueLEVELs and a BlueMETER SIGMA display. This can be replaced by the Wyler BlueLEVEL 2D.

SEE THE FULL BROCHURE IN DOWNLOADS FOR THE FULL SPECIFICATION AND OPTIONS AVAILABLE.

BlueLEVEL Features

  • Compact and pleasant design which is functionally optimised for precision measurement
  • Industrial Bluetooth radio transmission 35m range
  • Large easy to read LCD display which can be rotated to be visible from either side
  • Each instrument has its own specific address allowing the use of up to 64 instruments to be used simultaneously in a measurement system
  • Linearity according to DIN 2276
  • All instruments are equipped with RS 232/RS422RS485 interfaces
  • Powered by mains or standard rechargeable or alkaline type ‘C’ batteries
  • In compliance with CE regulations and all applicable EMC regulations
  • Fixing holes in bases 150mm and up upward for adaptable use in many applications

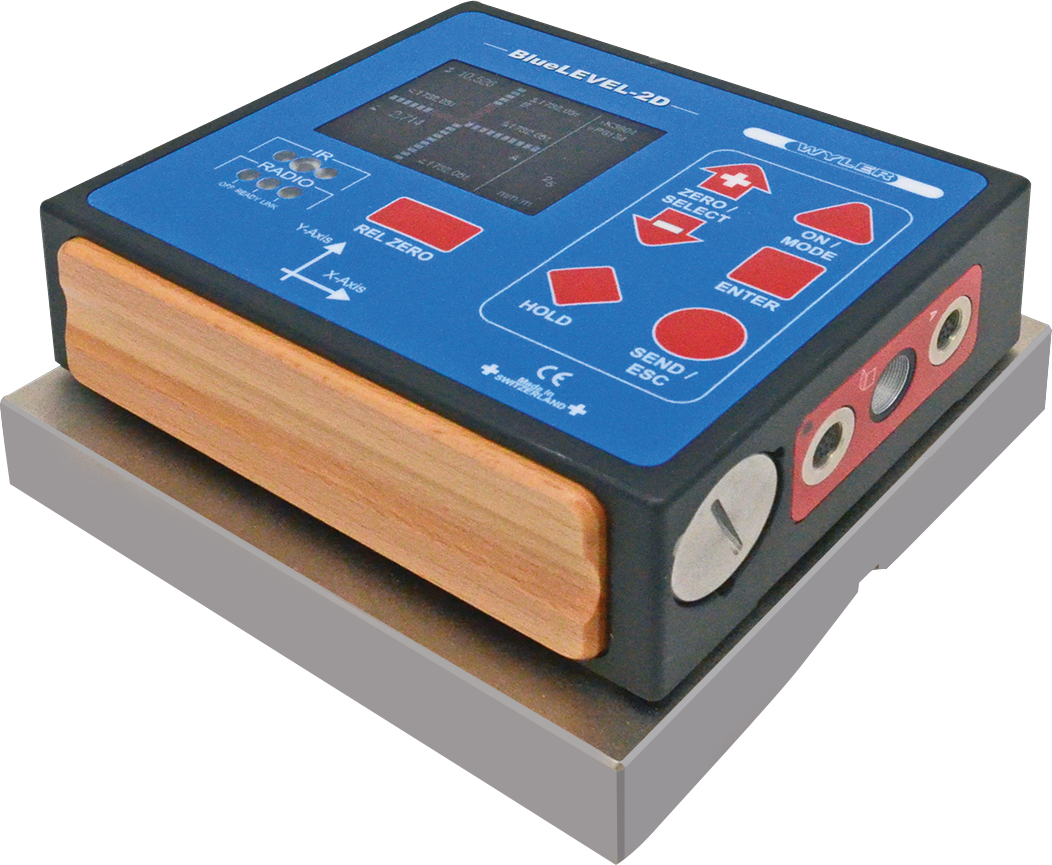

BlueLEVEL 2D Features

  • Dual Sensor technology for simultaneous X-Y Axis measurements
  • Industrial Bluetooth radio transmission 35m range
  • Large built in colour LCD with multiple display modes
  • Fully compatible and connectable with all other BlueSYSTEM instruments
  • Linearity according to DIN 2276
  • All instruments are equipped with RS 232/RS422RS485 interfaces
  • Powered by mains or standard rechargeable or alkaline type ‘C’ batteries
  • In compliance with CE regulations and all applicable EMC regulations
  • High precision base with three hardened steel inserts M4 fixing threads
