Bowers Ultima Bore Gauge - Sets - without Sylvac D62S Display

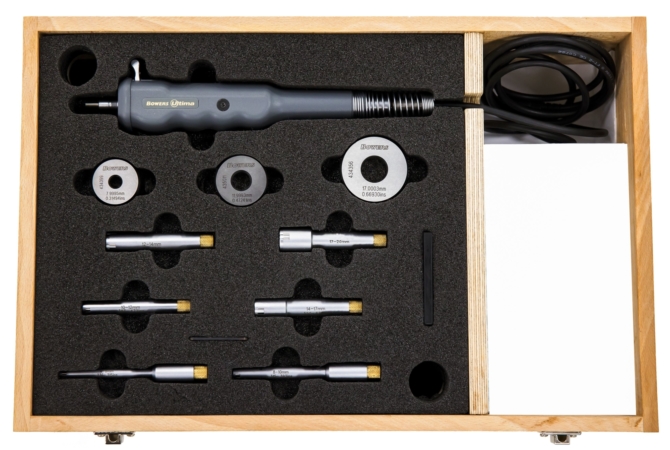

Ultima Set Uset7W No D62 S Display
Ultima Set Uset7W No D62 S Display

Bowers Ultima Bore Gauge - Sets - without Sylvac D62S Display

Bowers Ultima Bore Gauge offers a choice of resolutions up to 0.0001mm.

Make an Enquiry
See Full description

Product Description

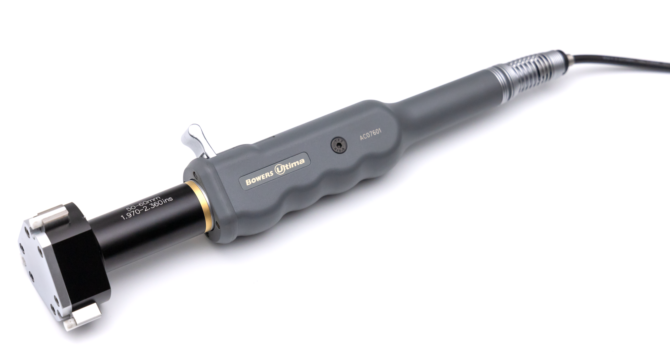

Featuring the NEW Bowers ‘FASTFIT’ measuring heads with extended measuring range (above 14mm), the Ultima boasts a simple lever operation and a constant measuring force, ensuring outstanding ease of use and repeatability under laboratory or shop-floor conditions.

Features

  • UKAS certificates standard for all measuring heads and setting rings
  • Measuring range 2-310mm (0.080"-12.000")
  • Resolution: 0.0001mm (0.00001")
  • Constant spring pressure for improved repeatability
  • Good positive feel as heads self-centre in the bore
  • Bowers 'Fastfit' measuring heads for rapid changeover
  • Ceramic anvils on heads above 12mm
  • Blind-bore measurement standard above 12mm
  • Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station
  • The complete range of Bowers special heads is available for the Ultima (grooves, threads, splines, deep-bores etc)
  • Depth stops available for all heads
  • Available without digital readout unit (if not required)
  • Alternative Sylvac digital readouts are available
  • Interchangeable probe option, to allow use of other manufacturers probes and displays
USET2DW Without Sylvac D62S display 2-6 POA
USET3DW Without Sylvac D62S display 6-10 POA
USET4DW Without Sylvac D62S display 10-20 POA
USET7DW Without Sylvac D62S display 6-20 POA
USET8DW Without Sylvac D62S display 20-50 POA
USET9DW Without Sylvac D62S display 50-100 POA
USET10DW Without Sylvac D62S display 20-100 POA

Product Downloads

Product Image Downloads
