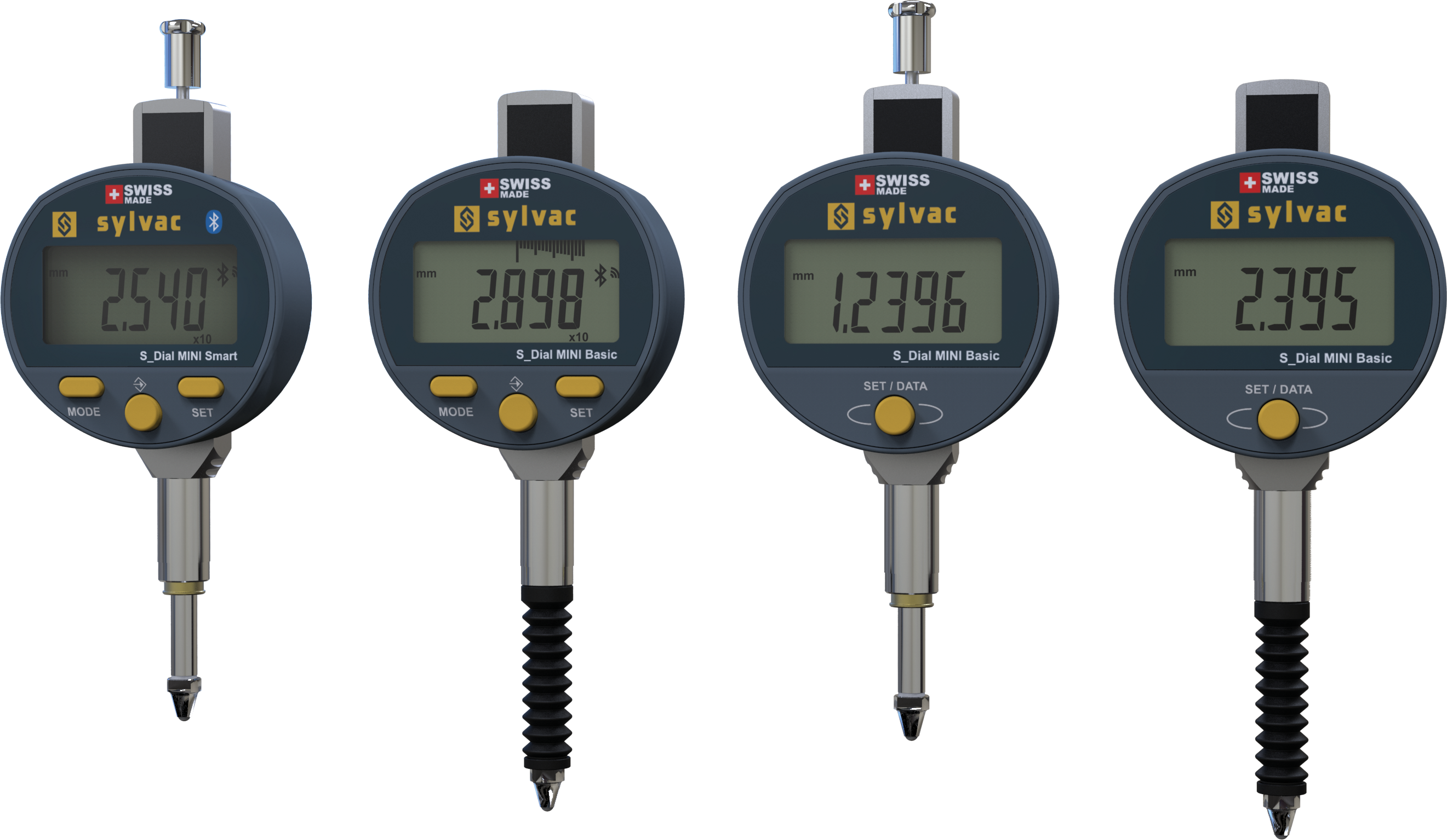

Sylvac S_Dial Mini Bluetooth indicator

Sylvac S_Dial Mini Bluetooth indicator

The Sylvac S_Dial Mini Indicator has been updated with a new look and the popular Bluetooth capability available as an option. The simple to operate instrument has an impressive list of advanced features including a large easy to read display, relative/absolute modes, preset function, metric/inch modes.

Full brochure available under downloads.

Product Description

The Sylvac S_Dial Mini Indicator has been updated with a new look and the popular Bluetooth capability available as an option. The simple to operate instrument has an impressive list of advanced features including a large easy to read display, relative/absolute modes, preset function, metric/inch modes.

Features

  • Compact, small diameter (Ø45 mm)
  • Water and coolant resistant, protection rating IP54 or IP67 according to IEC 60529 (depends on model)
  • Data output RS 232 combined with external power supply and Bluetooth® (depends on model)
  • Interchangeable contact point M2.5
  • Clamping stem Ø 8-h6 of hardened and ground stainless steel. Dovetail back
  • Min/max/delta display
  • Multiplication factor
  • Automatic power shut down
30-805-6121 12.5 10 ± 1 digit 2 0.5 - 0.9 N 0.01 Bluetooth® wireless technology / RS232 / USB POA
30-805-6125 12.5 10 ± 1 digit 2 0.6 - 1.3 N 0.01 Bluetooth® wireless technology / RS232 / USB POA
30-805-6521 12.5 4 2 0.5 - 0.9 N 0.01 Bluetooth® wireless technology / RS232 / USB POA
30-805-6525 12.5 4 2 0.6 - 1.3 N 0.01 Bluetooth® wireless technology / RS232 / USB POA
