SmartPlug Accessories

Product Description

We have a range of accessories available for our SmartPlugs, see the specification table for the whole list.

About our SmartPlugs

The robust, easy to use SmartPlug range is designed to give the operator greater speed of use, unmatched measuring accuracy and superb repeatability, especially in harsh shop-floor environments. Advanced hand held ergonomics allied to an ingenious mechanical / electronic system render SmartPlugs the easiest to operate Bowers bore gauging system to date. The flexible nature of Bowers SmartPlugs range means that they can be supplied fitted with easy to read electronic indicators (ideal for automatic data collection), conventional analogue indicators, or transducer probes linked to remote digital
readout units.

Features

Range 6-280mm
Tough, robust construction
Easy-to-use
Long life
High accuracy dedicated plug-gauges
Flexible, modular
Hand-held measurement
Can be incorporated into automated measuring systems (in-series)
Cost-effective
Short delivery times
High visibility display
Protective indicator shroud (with some indicators)
All setting rings supplied as standard with UKAS calibration certificates
Coverplates as standard on all SmartPlugs
Repeatability ≤1µm
Setting by means of a setting ring
Quick and reliable measurement
2-point measurement as standard
Blind bore available on request
Depth-stops available
Extensions available for deeper bores
Guide chamfer for easy entry into bore
High durability, long-life plugs and contacts
Easy to clean
Plug body coatings: Hard-chrome (standard), T.i.N., Plain steel
Measuring contacts: Tungsten carbide, (standard), hard-chrome, ruby, ceramic

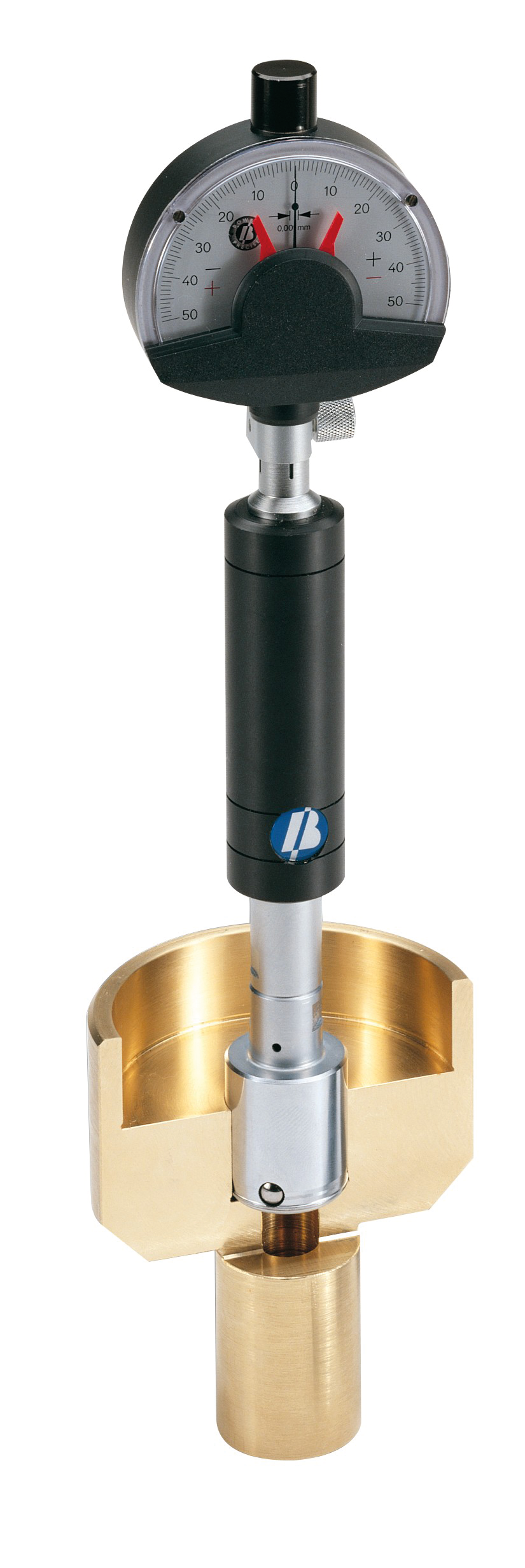

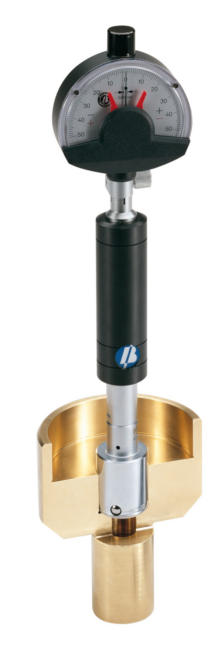

SMA001M	M6 Holder short 8mm stem	POA
SMA028	M6-M10 Adapter (to use M10 holders with M6 plugs)	POA
SMA013	Type C Indicator with shroud & M6 holder 8mm stem	POA
SMA002M	M6 Holder long 8mm stem	POA
SMA013-BT	Type C Bluetooth Indicator with shroud & M6 holder 8mm stem	POA
SMA021	*Type 'A' digital Mini indicator. Res. 0.001mm	POA
SMA009M	*Type A Mini indicator with shroud & M6 short holder 8mm stem	POA
SMA003	M6 100mm extension	POA
SMA022	Type 'B' mechanical dial-gauge. 0.001mm graduation	POA
SMA011M	*Type A Mini indicator with shroud & M6 long holder 8mm stem	POA
SMA004	M6 Probe holder 8mm stem	POA
SMPDS00-09	Depth Stop	POA
SMA005M	M10 Holder short 8mm	POA
SMA006M	M10 Holder long 8mm stem	POA
SMA007	M10 100mm extension	POA
SMA008	M10 Probe holder 8mm stem	POA
SMA015M-BT	Type A Mini Bluetooth indicator with shroud & M10 short holder 8mm stem	POA
SMA019	Type C Indicator with shroud & M10 holder 8mm stem	POA
SMA019-BT	Type C Bluetooth Indicator with shroud & M10 holder 8mm stem	POA
SMA019-NANO	Type C Nano Indicator with shroud & M10 holder 8mm stem (0.0001mm res)	POA
