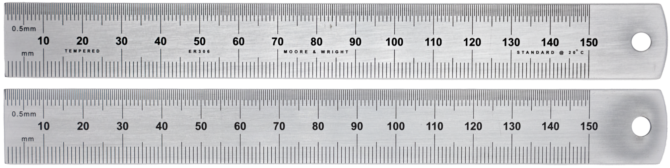

Moore & Wright Traditional Engineers’ Rules

Moore & Wright Traditional Engineers’ Rules

Metric and imperial traditional engineer's rules from Moore & Wright.

Product Description

Made from fine quality steel which has been hardened and tempered to provide the ideal balance between flexibility and durability.

Features

  • D shaped end with hanging hole
  • Satin chrome anti-glare finish
  • Permanent black high definition scale markings
  • Metric scales front and rear face graduations 0.5mm, 1.0mm
  • Metric / Imperial scales front face graduations 1/16th, 1/32nd, 1/64th 1/10th, 1/20th, 1/50th, 1/100th of an inch
  • Metric / Imperial scales rear face graduations 0.5mm, 1.0mm
ER106 150mm/ 6" Engineers' Rigid Rule 19 1.2mm POA
ER112 300mm/ 12" Engineers' Rigid Rule 25 1.2mm POA
ER212 300mm/ 12" Engineers' Rigid Rule 12.5 1.2mm POA
ER206 150mm/ 6" Engineers' Rigid Rule 300mm/ 12" Engineers' Rigid Rule 12.5 1.2mm POA
ER306 150mm Engineers' Rigid Rule 19 1.2mm POA
ER312 300mm Engineers' Rigid Rule 25 1.2mm POA
ER424 600mm/ 24" Engineers' Rigid Rule 25 1.2mm POA

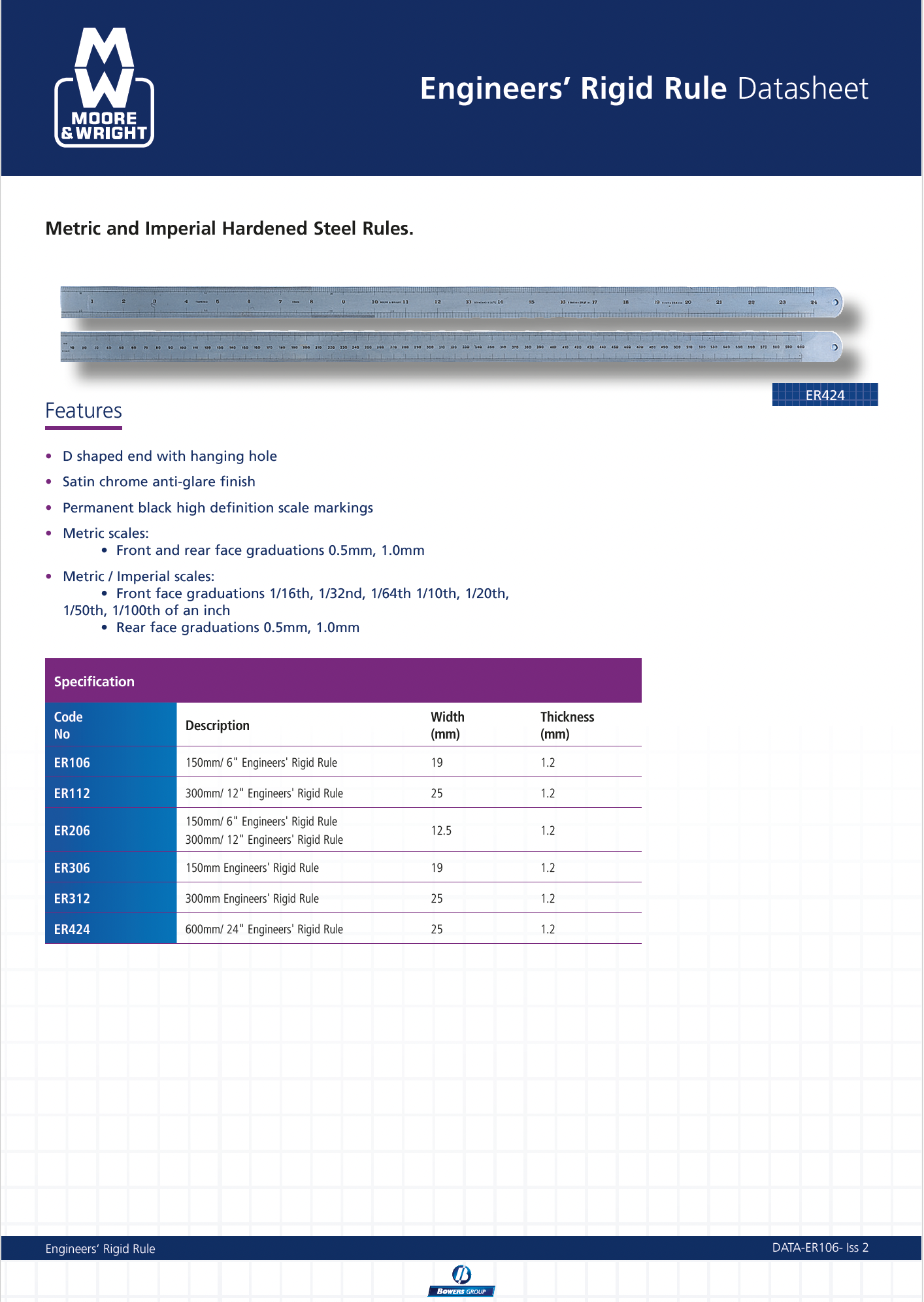

Product Downloads
